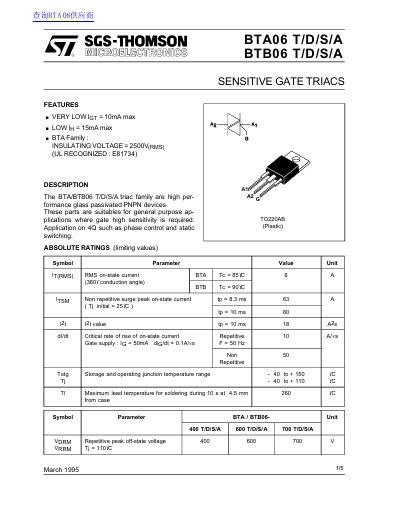

BTA/BTB06 T/D/S/A Triac family are high performance glass passivated PNPN devices. These parts are suitables for general purpose applications where gate high sensitivity is required. Application on 4Q such as phase control and static switching.
This document provides technical specifications for the BTA/BTB06 T/D/S/A triac family. These high-performance glass passivated PNPN devices are designed for general-purpose applications requiring high gate sensitivity, such as phase control and static switching in TO220AB packages.
The datasheet details absolute ratings including RMS on-state current up to 6A and surge peak currents of 63A. It also lists electrical characteristics like trigger current (Igt) and holding current (IH), thermal resistances for junction-to-ambient and junction-to-case, and mechanical dimensions for the TO220AB plastic package.
| RMS on-state current (IT(RMS)) | 6 A |
|---|---|
| Non repetitive surge peak on-state current (TSM) | 63 A |
| Storage and operating junction temperature range (Tstg) | -40 to +150 °C |
| Junction-to-ambient thermal resistance (Rth(j-a)) | 60 °C/W |
| Junction-to-case thermal resistance DC (Rth(j-c)) | 4.4 °C/W |
| Gate trigger current max (Igt) | 10 mA |
| Holding current max (IH) | 25 mA |
| Package type | TO220AB Plastic |
The maximum RMS on-state current for the BTA model at a junction temperature of 85°C is 6 A.
The device operates within a junction temperature range of -40 to +110 °C.
The TSM value is 63 A for a pulse duration of 8.3 ms with an initial junction temperature of 25°C.
