BFQ252, BFQ252A are PNP video transistors manufactured by Philips Semiconductors, with high breakdown voltage, low output capacitance, optimum temperature profile and excellent reliability properties

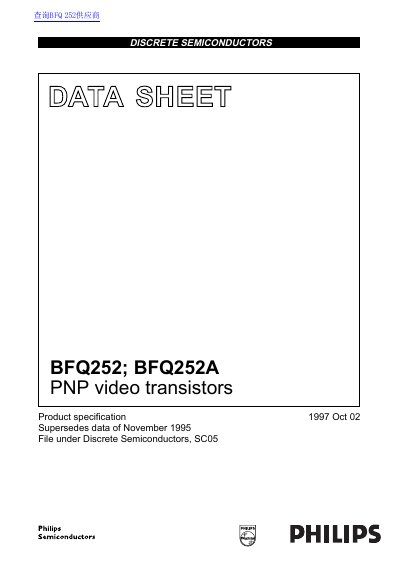

This document is a product specification datasheet for the Philips BFQ252 and BFQ252A, which are PNP video transistors designed for use as buffer or driver components in high-resolution color graphics monitors. The devices are housed in a plastic SOT32 (TO-126) single-ended leaded package and are noted for their high breakdown voltages, low output capacitance, and excellent reliability properties. They are the PNP complements to the BFQ232 and BFQ232A series.
| Package Type | SOT32 (TO-126) plastic package |
|---|---|
| Collector-Base Voltage (BFQ252) | -100 V |
| Collector-Base Voltage (BFQ252A) | -115 V |
| Collector Current (DC) | -300 mA |
| Total Power Dissipation | 3 W |
| Transition Frequency (BFQ252) | 1.3 GHz |
| Transition Frequency (BFQ252A) | 1.2 GHz |
They are used as a buffer or driver in high-resolution color graphics monitors.
The NPN complements are the BFQ232 and BFQ232A.
The storage temperature range is from -65 °C to +150 °C.
