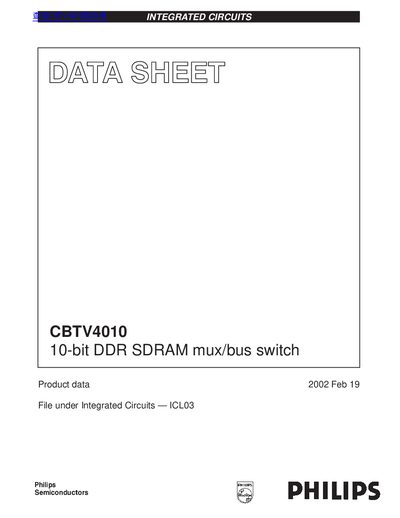

CBTV4010 10-bit DDR SDRAM mux/bus switch is designed for use in Double Data Rate (DDR) SDRAM applications. It is designed to be used with 400 Mbps/200 MHz DDR data bus and has 20 Ω on resistance. The part incorporates a very low cross-talk data-data/data-DQM.
The Philips CBTV4010 is a 10-bit bus switch optimized for Double Data Rate (DDR) SDRAM applications. It is designed to be used with 400 Mbps/200 MHz DDR data buses and features a 20 Ω on-resistance to eliminate the need for series resistors. The device incorporates internal 100 Ω pull-down resistors and offers low differential skew and matched rise/fall slew rates.
| Supply Voltage | 2.3 V to 2.7 V |
|---|---|
| Operating Temperature | 0 to +85 °C |
| Package | TFBGA64 |
The device is designed for 2.3 V to 2.7 V Voc operation.
Yes, the enable signal is SSTL_2 compatible.
The part is characterized for operation up to +85 °C.
