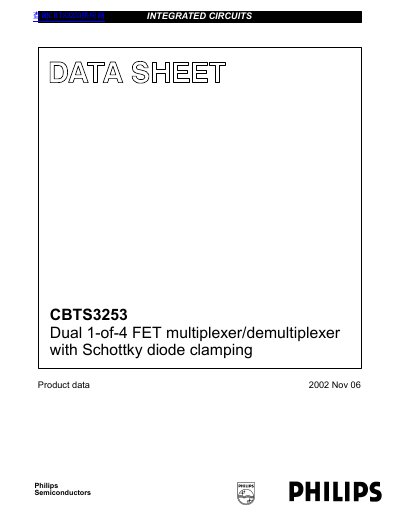

The CBTS3253 is a dual 1-of-4 high-speed TTL-compatible FET multiplexer/demultiplexer from PHILIPS
The Philips CBTS3253 is a dual 1-of-4 high-speed TTL-compatible FET multiplexer/demultiplexer designed to connect inputs to outputs with minimal propagation delay. It features Schottky diodes on I/O to clamp undershoot and provides ESD protection exceeding 2000 V HBM. The device is characterized for operation from -40 to +85°C.
| Operating temperature range | -40 to +85 °C |
|---|---|
| Continuous channel current | 128 mA |
| ESD protection (HBM) | 2000 V |
It is a dual 1-of-4 high-speed TTL-compatible FET multiplexer/demultiplexer.
Yes, it includes Schottky diodes on I/O to clamp undershoot.
