PHILIPS CBTS3384 10-bit bus switch with 5-bit output enables Schottky undershoot protection handbook

The CBTS3384 is a 10-bit bus switch with 5-bit output enables and Schottky undershoot protection from Philips Semiconductors. It features a 5Ω switch connection between two ports, TTL compatible control input and output levels, undershoot protection to prevent shoot through level changes, 500mA latch-up protection, 2000V HBM, 200V MM and 1000V CDM ESD protection.

Brand
Philips
File format
PDF
Published
06 July, 2012
Updated
30 September, 2023
MD5 checksum
C7FD1A0E1CDAC708E3BAF00FCCE6C4B6
PDF

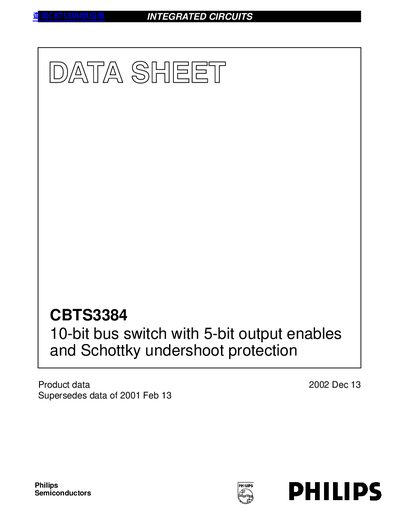

PHILIPS CBTS3384 10-bit bus switch with 5-bit output enables Schottky undershoot protection handbook PDF
