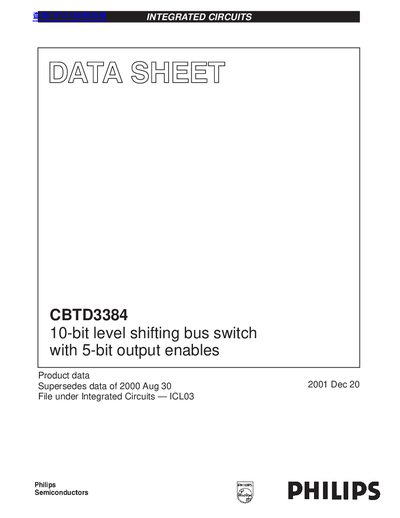

The CBTD3384 is a 10-bit level shifting bus switch with 5-bit output enables from PHILIPS Semiconductors. It supports 5V to 3.3V level shifting and has low on-state resistance and low propagation delay.
The Philips CBTD3384 is a 10-bit level shifting bus switch featuring two 5-bit bus switches with separate output-enable inputs. It is designed for TTL-compatible control and output levels, specifically facilitating level shifting between 5 V and 3.3 V systems. The device offers low on-state resistance to minimize propagation delay and includes latch-up and ESD protection.
| Operating Temperature Range | -40 to +85 °C |
|---|---|
| Supply Voltage | 4.5 to 5.5 V |
The device is designed to be used in 5 V to 3.3 V level shifting applications.
The maximum junction temperature should not exceed 150 °C.
