This document is the Philips Semiconductors product specification. It introduces the characteristics of the BT136F series of thyristors, including reverse repetitive peak voltage, rated DC current, non-repetitive peak DC current, gate voltage, gate current, etc.

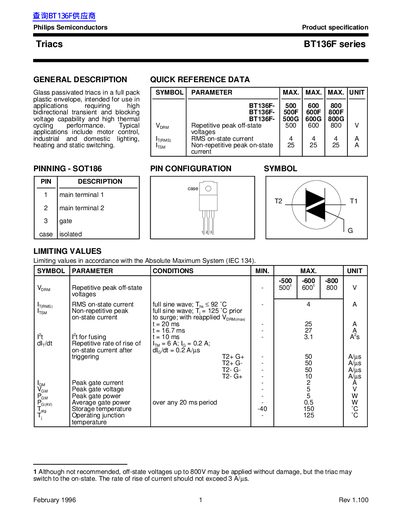

This document provides a product specification for the BT136F series of triacs manufactured by Philips Semiconductors. These devices are glass passivated components in a full pack plastic envelope (SOT186), designed for applications requiring high bidirectional transient and blocking voltage capability as well as high thermal cycling performance.
| Package Type | SOT186 full pack plastic envelope |
|---|---|
| Typical IT(RMS) (All models) | 4 A |
| Typical ITSM (All models) | 25 A |
| Operating Junction Temperature | -125 C |
| Storage Temperature | -40 to 150 C |
| Net Mass | 2 g |
The maximum operating junction temperature (Tj) is -125 C.
The maximum operating junction temperature is 125 °C.
The maximum peak gate voltage is 5 V.
