The BT136B series E sensitive gate triacs are intended for use in general purpose bidirectional switching and phase control applications where high sensitivity is required in all four quadrants.

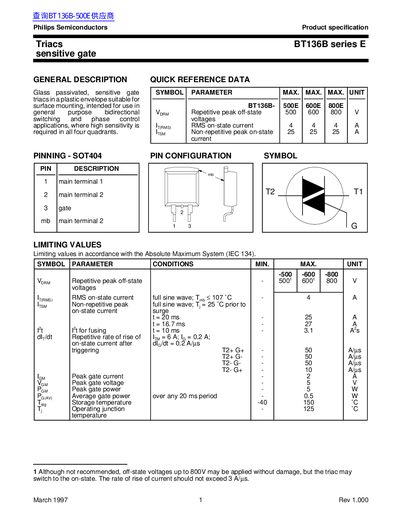

This datasheet provides technical specifications for the Philips BT136B series E, which are glass passivated, sensitive gate triacs suitable for surface mounting. These devices are designed for general-purpose bidirectional switching and phase control applications where high sensitivity is required in all four quadrants.
The document details limiting values such as repetitive peak off-state voltages (500V to 800V) and RMS on-state currents up to 4A. It also includes static and dynamic characteristics, thermal resistances, mechanical data for the SOT404 package, and application curves regarding current limits versus temperature and pulse width.
| Package Type | SOT404 |
|---|---|
| Net Mass | 1.4 g |
| Repetitive peak off-state voltage (VDRM) | 500 V / 600 V / 800 V |
| RMS on-state current (IT(RMS)) | 4 A |
| Non-repetitive peak on-state current (ITSM) | 25 A |
| Operating junction temperature (Tj) | -125 °C to +125 °C |
Each triac has a net mass of 1.4 g.
