BT137F series glass passivated triacs, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching.

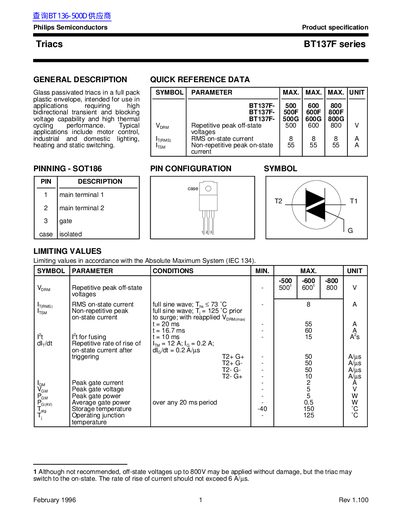

This document is a product specification datasheet for the BT137F series of glass passivated triacs manufactured by Philips Semiconductors. These devices are designed in a full plastic envelope (SOT186) for applications requiring high bidirectional transient and blocking voltage capability, as well as high thermal cycling performance.
The datasheet provides comprehensive electrical characteristics including limiting values, static parameters such as gate trigger current and latching current, dynamic characteristics like critical rates of change of off-state voltage, and typical on-state curves. It also includes mechanical data with dimensions in millimeters for the SOT186 package.
| Maximum Repetitive Peak Off-State Voltage | 500V, 600V, or 800V |
|---|---|
| Maximum RMS On-State Current | 8 A |
| Storage Temperature Range | -40 °C to +150 °C |
The net mass of the component is 2 g.
