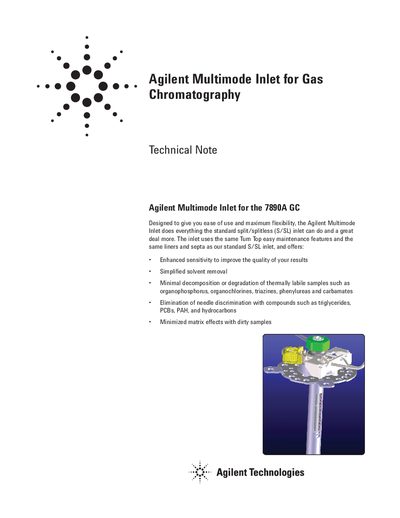

Agilent Multimode Inlet is a gas chromatography inlet that can introduce a large amount of sample (5 µL to 250 µL or more) into Agilent 7890 Series GC systems, thereby reducing detection limits while maintaining high sample throughput and quality of results.
The Agilent Multimode Inlet is designed to provide ease of use and maximum flexibility for gas chromatography applications. It performs all functions of a standard split/splitless inlet while offering additional features such as enhanced sensitivity, simplified solvent removal, and minimized decomposition of thermally labile samples. The inlet supports large volume injections ranging from 5 pL to over 250 pL in a single injection.
| Cryogenic Cooling (Liquid N2) | -160 °C |
|---|---|
| Cryogenic Cooling (liquid CO2) | -70°C |
| Air cooling limit | +10 °C with oven temperature <50 °C |
| Heating Rate | Up to 900 °C per minute |
| Maximum Temperature | 450°C |
| Temperature Programming | Up to 10 ramps at up to 900 °C/min |
| Injection Modes | Hot or cold split/splitless, pulsed split/splitless, solvent vent, direct |
| Capillary column suitability | All (50 ym to 530 pm) |
| EPC pressure range | 0 to 100 psig |
| Split ratio | Up to 7500 to 1 |
You can inject up to 250 pL in a single injection.
Yes, you can inject up to 500 pL with multiple injections.
Yes, it features a solvent elimination mode and is compatible with the Agilent Solvent Elimination Calculator.
