Technical drawings of Agilent 3G microarray formats, providing the sizes and features of the 1M, 2x400K, 4x180K and 8x60K formats

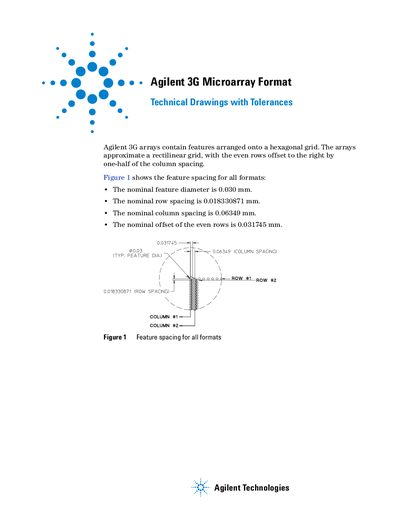

This document provides technical drawings and tolerance specifications for the Agilent 3G Microarray Format. The arrays utilize a hexagonal grid arrangement that approximates a rectilinear grid, with even rows offset by half the column spacing. The nominal feature diameter is specified as 0.030 mm.
| Nominal feature diameter | 0.030 mm |
|---|---|
| Nominal row spacing | 0.018330871 mm |
| Nominal column spacing | 0.06349 mm |
| Nominal offset of even rows | 0.031745 mm |
The nominal feature diameter is 0.030 mm.
The 1M format contains a single array of 974,016 features.
The barcode and numeric label is applied to the non-DNA side.
