High-sensitivity detection cell for the Agilent Capillary Electrophoresis system represents a major advance in detection technology for capillary electrophoresis, increasing sensitivity by an order of magnitude.

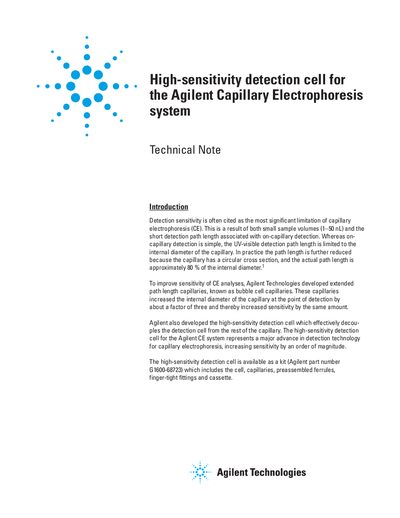

This document introduces the Agilent high-sensitivity detection cell, a kit designed to improve UV-visible absorbance detection in capillary electrophoresis (CE). The device features a unique decoupled design constructed from black fused silica, which increases the effective path length by approximately three times compared to standard on-capillary detection. This results in an order of magnitude increase in sensitivity and a significantly extended linear dynamic range.
| Cell dimensions | 100 um square |
|---|---|
| Path length | 1.2 mm |
| Volume | 12 nL |
| Material | black fused silica |
| Part number | G 1600-68723 |
It provides an order of magnitude increase in sensitivity compared to standard on-capillary detection.
The black fused silica construction eliminates stray light, allowing a linear range beyond 1300 mAU with less than 1% deviation.
