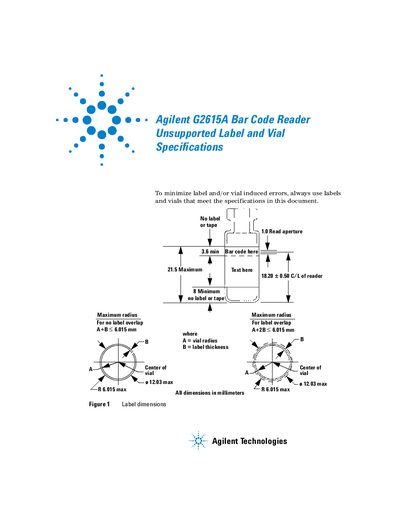

This document describes the unsupported label and vial specifications for the Agilent G2615A Bar Code Reader. Always use labels and vials that meet the specifications in this document to minimize label and/or vial induced errors.
This manual outlines the maximum dimensions for unsupported label and vial configurations used with the Agilent G2615A Bar Code Reader. It specifies constraints on radius, thickness, height, and positioning to prevent read errors caused by physical interference or overlap.
The document includes specific geometric limits for labels without tape and capped vials, detailing maximum radii, minimum bar code heights, and centering tolerances relative to the reader's aperture.
| Maximum label radius for no overlap | < 6.015 mm |
|---|---|
| Read aperture diameter | 21.5 mm |
| Minimum bar code height | 3.6 mm |
| Maximum label thickness (B) | 0.50 mm |
The maximum radius for no label overlap is 6.015 mm.
A minimum bar code height of 3.6 mm is required.
