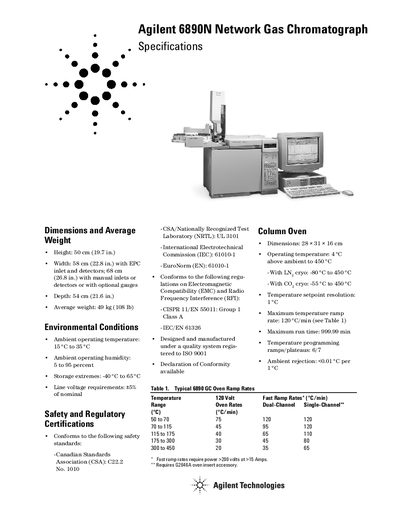

This document provides the technical specifications for the Agilent 6890N Network Gas Chromatograph. It details the physical dimensions, environmental operating conditions, and safety certifications required for the instrument. The unit weighs an average of 49 kg and operates within an ambient temperature range of 15°C to 35°C.
| Ambient Operating Temperature | 15°C to 35°C |
|---|---|
| Storage Temperature Extremes | -40°C to 65°C |
| Line Voltage Requirements | 45% of nominal |
| Maximum Oven Temperature | 450°C |
| Maximum Temperature Ramp Rate | 120°C/min |
| Maximum Inlets Installed | two |
| Maximum Operating Temperature for Inlets | 400°C |
| Maximum Operating Temperature for Detectors | 450°C |
| EPC Channels | Up to 13 |
The instrument conforms to CSA C22.2 No. 1010, UL 3101, IEC 61010-1, and EN 61010-1.
The maximum run time is 999.99 minutes.
