Agilent 3000 Natural Gas Analyzer (NGA) is a 2-channel gas chromatograph-mass spectrometer (GC-MS) analyzer that measures natural gas components and pollutants.

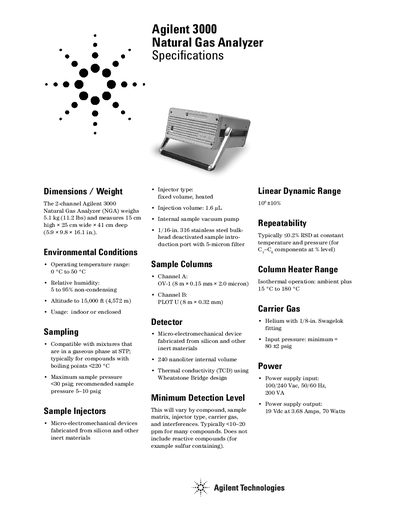

This document provides technical specifications for the Agilent 3000 Natural Gas Analyzer (NGA). The device weighs 5.1 kg and measures 15 cm high x 25 cm wide x 41 cm deep. It is designed for indoor or enclosed use within an operating temperature range of 0 °C to 50 °C and relative humidity of 5 to 95% non-condensing.
| Weight | 5.1 kg (11.2 Ibs) |
|---|---|
| Dimensions | 15 cm high x 25 cm wide x 41 cm deep |
| Operating Temperature | 0 °C to 50 °C |
| Relative Humidity | 5 to 95% non-condensing |
| Maximum Sample Pressure | <30 psig |
| Recommended Sample Pressure | 5-10 psig |
| Injector Type | fixed volume, heated |
| Injection Volume | 1.6 uL |
| Minimum Detection Level | <10—20 ppm |
| Power Supply Input | 100/240 Vac, 50/60 Hz, 200 VA |
The operating temperature range is 0 °C to 50 °C.
The recommended sample pressure is 5-10 psig.
The injection volume is 1.6 uL.
