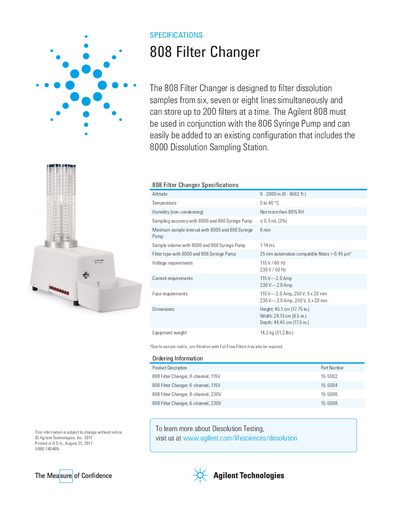

The 808 Filter Changer is designed to filter dissolution samples from six, seven or eight lines simultaneously and can store up to 200 filters at a time. The Agilent 808 must be used in conjunction with the 806 Syringe Pump and can easily be added to an existing configuration that includes the 8000 Dissolution Sampling Station.
The Agilent 808 Filter Changer is designed to filter dissolution samples from six, seven, or eight lines simultaneously. It can store up to 200 filters at a time and must be used in conjunction with the 806 Syringe Pump.
This document provides technical specifications including operating altitude (0-2000 m), temperature range (5 to 40°C), humidity limits, sampling accuracy (+0.3 mL), minimum sample interval (6 min), and supported filter types.
| Altitude | 0 - 2000 m (0 - 6562 ft.) |
|---|---|
| Temperature | 5 to 40°C |
| Humidity (non-condensing) | Not more than 80% RH |
| Filter type with 8000 and 806 Syringe Pump | 26 mm automation compatible filters > 0.45 pm* |
| Voltage requirements (115V) | 115/60 Hz |
| Current requirements (115V) | 230 V—2.0 Amp |
| Fuse requirements (115V) | 115 V—2.0 Amp, 250 V, & x 20 mm |
| Fuse requirements (230V) | 230 V—2.0 Amp, 250 V, 5 x 20 mm |
| Height | 45.1 em (17.78 in.) |
| Width | 24.13 em (9.5 in.) |
| Depth | 44.45 em (17.5 in.) |
| Equipment weight | 14.2 kg (31.2 Ibs) |
The unit supports 115/60 Hz and 230 V/50 Hz.
It is designed for 26 mm automation compatible filters greater than 0.45 pm.
