Agilent 660/670/680 Series FTIR is the world’s best FTIR. It has the following features: a 38 mm dynamically aligned, 60° mechanical bearing Michelson interferometer, covering the widest spectral range down to 20 cm-1, maximum resolution better than 0.075 cm-1, revolutionary air-cooled source, delivering more than 50 mW of power. The instrument can be upgraded to 670 or 680 FTIR, providing you with maximum flexibility as your FTIR needs change.

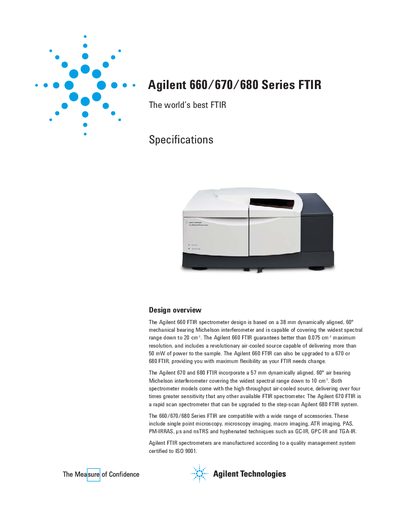

This document provides a design overview and guaranteed specifications for the Agilent 660, 670, and 680 Series FTIR spectrometers. The series features dynamically aligned Michelson interferometers and air-cooled sources, with the 670 and 680 models offering higher sensitivity and step-scan capabilities.
| Interferometer type | 38 mm dynamically aligned, 60° mechanical bearing (660) or 57 mm air bearing (670/680) |
|---|---|
| Spectral range | Mid IR: 9,000-375 cm⁻¹; Far IR: 600-10 cm⁻¹ |
| Guaranteed spectral resolution | Better than 0.075 cm⁻¹ |
| Infrared power (at sample focus) | >50 mW (660); >160 mW (670/680) |
| Wavenumber accuracy | 0.005 cm⁻¹ at 2200 cm⁻¹ |
| Sample compartment dimensions | 23.2 x 27.6 x 15.4 cm |
| Spectrometer dimensions | 70.8 x 75.6 x 34.4 cm |
| Weight | 80 kg |
The Agilent 660 FTIR guarantees better than 0.075 cm⁻¹ maximum resolution.
Yes, the Agilent 660 FTIR can be upgraded to a 670 or 680 FTIR.
The warranty is 12 months, though this may vary according to location.
