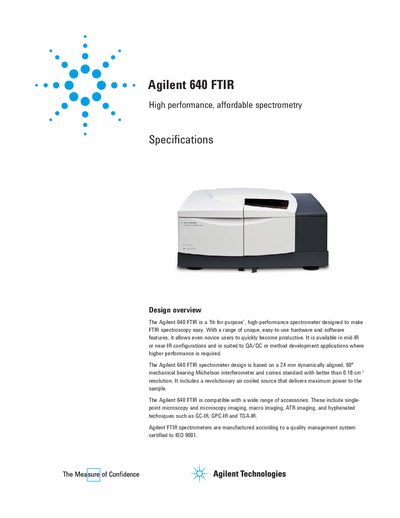

Agilent 640 FTIR is a high-performance spectrometer that is suitable for QA/QC or method development applications where higher performance is required. It has a range of unique, easy-to-use hardware and software features that allow even novice users to quickly become productive.
The Agilent 640 FTIR is a high-performance, affordable spectrometer designed for easy-to-use FTIR spectroscopy. It features a 24 mm dynamically aligned Michelson interferometer with better than 0.18 cm⁻¹ resolution and includes an air-cooled source to deliver maximum power to the sample.
| Interferometer type | 24 mm dynamically aligned, 60° mechanical bearing Michelson |
|---|---|
| Spectral range (Mid IR) | 9,000-375 cm⁻¹ |
| Spectral range (Near-IR) | 15,800-2,800 cm⁻¹ |
| Spectral resolution (Guaranteed) | Better than 0.19 cm⁻¹ |
| Signal-to-noise ratio (Typical 5 sec p-p) | >8,000:1 |
| Sample compartment dimensions | 23.2 x 27.6 x 15.4 cm (9.1 x 10.9 x 6.1 in) |
| Spectrometer dimensions | 70.8 x 75.6 x 34.4 cm (27.9 x 29.8 x 13.5 in) |
| Weight | 80 kg (176 pounds) |
The instrument comes standard with a resolution better than 0.18 cm⁻¹.
