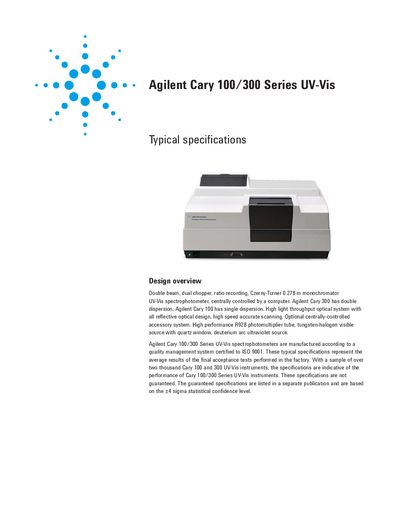

The document provides an overview of the design and performance specifications of the Agilent Cary 100/300 Series UV-Vis spectrophotometers. The series features a double beam, dual chopper, ratio recording, Czerny-Turner 0.278 m monochromator structure centrally controlled by a computer. It has a high light throughput optical system with all reflective optical design and high-speed accurate scanning capabilities. The spectrophotometers also come with an optional centrally-controlled accessory system. They are equipped with a high-performance R928 photomultiplier tube, a tungsten-halogen visible source with a quartz window, and a deuterium arc ultraviolet source. The products in the Cary 100/300 Series are manufactured according to a quality management system certified to ISO 9001. The specifications provided in the document are based on the average results of the final acceptance tests performed in the factory using a sample of over two thousand Cary 100 and 300 UV-Vis instruments. These specifications are not guaranteed, and guaranteed specifications are listed in a separate publication based on the ±4 sigma statistical confidence level.
This document provides typical specifications for the Agilent Cary 100 and Cary 300 Series UV-Vis spectrophotometers. The instruments feature a double beam design with dual choppers and ratio recording capabilities. The Cary 300 model includes a pre-monochromator, while the Cary 100 does not.
| Wavelength range | 190-900 nm |
|---|---|
| Monochromator type | Czerny-Turner 0.278 m |
| Detectors | R928 PMT |
| Photometric accuracy (0.3 Abs) | + 0.0074 %T |
| Photometric range | 4.0 Abs (Cary 100) / 6.0 Abs (Cary 300) |
| Photometric display | + 9.9999 Abs + 200.00 %T |
| Spectral bandwidth range | 0.20-4.00 nm, 0.1 nm steps |
The standard warranty is 12 months, though this may vary according to location.
The instruments operate within a wavelength range of 190-900 nm.
The instrument dimensions are 139 x 389 x 129 mm (width x depth x height).
Operation requires a temperature of 10-35 °C and 50-80% relative humidity at altitudes below 853 m.
