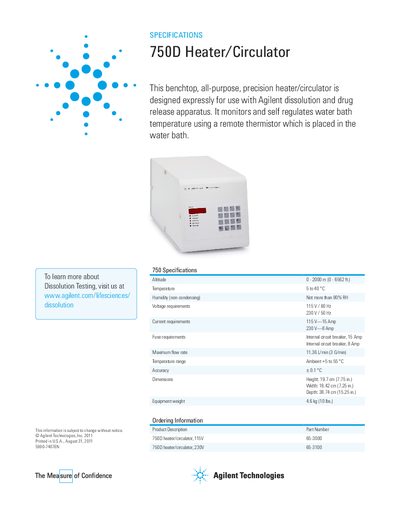

The 750D Heater/Circulator is a benchtop, all-purpose, precision heater/circulator that is designed expressly for use with Agilent dissolution and drug release apparatus. It monitors and self regulates water bath temperature using a remote thermistor which is placed in the water bath.
The Agilent 750D Heater/Circulator is a benchtop, all-purpose device designed expressly for use with Agilent dissolution and drug release apparatus. It monitors and self-regulates water bath temperature using a remote thermistor placed in the water bath.
Key specifications include an operating altitude of 0 to 2000 m, a maximum flow rate of 11.36 L/min (3 G/min), and a temperature accuracy of +0.1°C. The unit operates on 115 V/60 Hz or 230 V/50 Hz power supplies with internal circuit breakers rated for 16 Amps and 8 Amps respectively.
| Altitude | 0 - 2000 m (0 - 6562 ft) |
|---|---|
| Voltage requirements | 115 V/ 60 Hz, 230 V/ 50 Hz |
It is designed expressly for use with Agilent dissolution and drug release apparatus to monitor and self-regulate water bath temperature.
The unit requires 115 V at 60 Hz or 230 V at 50 Hz.
