Agilent Cary 4000/5000/6000i series UV-Vis-NIR spectrophotometers are double beam, ratio recording, double out-of-plane Littrow monochromator UV-Vis-NIR spectrophotometers (Agilent Cary 4000 is UV-Vis only)

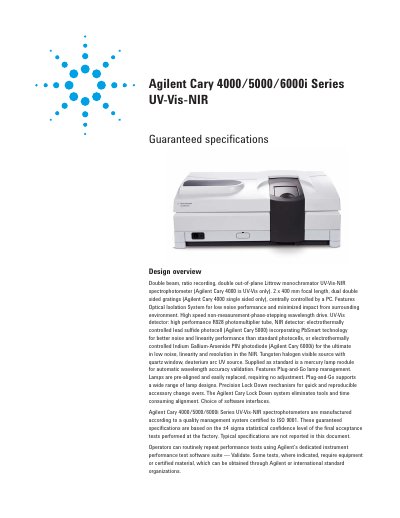

This document provides guaranteed performance specifications for the Agilent Cary 4000/5000/6000i Series UV-Vis-NIR spectrophotometers. These specifications are based on a ±4 sigma statistical confidence level derived from final acceptance tests performed at the factory, rather than typical values.
The document details specific performance metrics for three models: the Cary 4000 (UV-Vis only), the Cary 5000 (UV-Vis-NIR with PbS detector), and the Cary 6000i (UV-Vis-NIR with InGaAs detector). Key parameters covered include monochromator type, wavelength range, photometric accuracy, stray light levels, and instrument dimensions.
| Monochromator Type | Double out-of-plane Littrow monochromator |
|---|---|
| UV-Vis Limiting Resolution | <0.048 nm |
| Photometric Accuracy (UV-Vis, 0.3 Abs) | <0.00025 Abs |
| Maximum Scan Rate (UV-Vis) | 2000 nm/min |
| Instrument Weight | 91 kg |
| Standard Warranty Period | 12 months |
These are guaranteed specifications based on the ±4 sigma statistical confidence level of final acceptance tests.
Operators can use Agilent's dedicated instrument performance test software suite called Validate.
The standard policy warranty is 12 months, though this may vary according to location.
