The Agilent Cary 60 UV-Visible spectrophotometer is a high-performance, accurate, and flexible spectrophotometer equipped with a full-spectrum single pulsed xenon lamp for measurements in the 190-1100nm wavelength range.

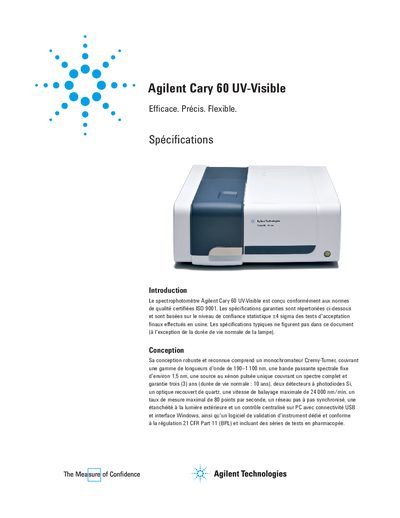

This document provides guaranteed specifications for the Agilent Cary 60 UV-Visible spectrophotometer. The instrument features a robust Czerny-Turner monochromator with a holographic grating and a pulsed xenon flash lamp source. It is designed to meet ISO 9001 quality standards, with final acceptance tests based on a +4 sigma statistical confidence level. This manual is written in French.
| Wavelength Range | 190-1 100 nm |
|---|---|
| Monochromator Type | Czerny-Turner |
| Grating Lines/mm | 1 200 lines/mm |
| Source Type | Pulsed Xenon Flash Lamp |
| Lamp Warranty | 3 years |
| Normal Lamp Life | 10 years |
| Max Scan Speed | 24 000 nm/min |
| Photometric Range (Abs) | +3,3 Abs |
| Wavelength Precision | +0.5 nm @ 454-194 nm |
The normal life of the pulsed xenon flash lamp is 10 years.
Yes, the instrument comes with a twelve (12) month warranty.
The maximum scanning speed is 24,000 nm/min.
