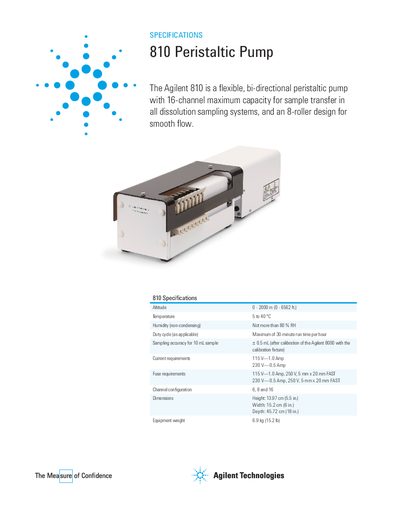

Agilent 810 is a flexible, bi-directional peristaltic pump with 16-channel maximum capacity for sample transfer in all dissolution sampling systems, and an 8-roller design for smooth flow.
The Agilent 810 is a flexible, bi-directional peristaltic pump designed for sample transfer in dissolution sampling systems. It features an 8-roller design for smooth flow and supports a maximum capacity of 16 channels.
The document provides technical specifications including operating altitude, temperature, humidity, and power requirements. It also lists dimensions, weight, and specific ordering information for 6, 8, and 16-channel configurations at 115V and 230V.
| Maximum Channel Capacity | 16-channel |
|---|---|
| Roller Design | 8-roller |
| Altitude | 2000 m (0 - 6562 ft.) |
| Temperature | Sto 40°C |
| Duty Cycle | Maximum of 30-minute run time per hour |
| Sampling Accuracy | +0.5 mL |
| Current Requirements (115V) | 1.0 Amp |
| Current Requirements (230V) | 0.5 Amp |
| Fuse Requirements (115V) | 250 V, 5 mm x 20 mm FAST |
| Fuse Requirements (230V) | 250 V, 5 mm x 20 mm FAST |
| Dimensions | Height: 13.97 cm (6.5 in.), Width: 16.2 cm (6 in.), Depth: 45.72 cm (18 in.) |
| Equipment Weight | 6.9 kg (15.2 Ib) |
The Agilent 810 has a maximum capacity of 16 channels for sample transfer.
The maximum duty cycle is a 30-minute run time per hour.
The 115V model requires 1.0 Amp of current.
