This datasheet provides data information of Cree® P4 LED Model # LP379PBG1-C0G-03, including maximum current, peak current, reverse voltage, power dissipation, operating temperature, storage temperature, soldering temperature etc.

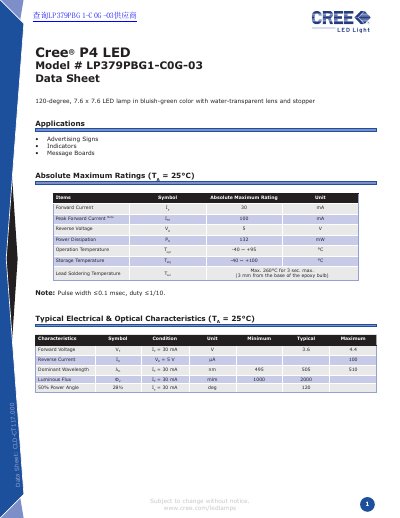

The document provides a technical specification sheet for the Cree LP379PBG1-C0G-03, a 120-degree viewing angle P4 LED lamp in bluish-green color. It includes absolute maximum ratings such as forward current and power dissipation, along with typical electrical characteristics like forward voltage and dominant wavelength at 25°C.
| Forward Current (IF) | 30 mA |
|---|---|
| Peak Forward Current (IFP) | 100 mA |
| Reverse Voltage (VR) | 5 V |
| Power Dissipation (PD) | 132 mW |
| Operation Temperature (Topr) | -40 ~ +95 °C |
| Storage Temperature (Tstg) | -40 ~ +100 °C |
| Dominant Wavelength (λD) | 495 505 510 nm |
| Luminous Flux (ΦV) | 1000 2000 mlm |
| 50% Power Angle (2θ½) | 120 deg |
This LED is suitable for advertising signs, indicators, and message boards.
The lead soldering temperature should not exceed 260°C for a maximum of 3 seconds.
