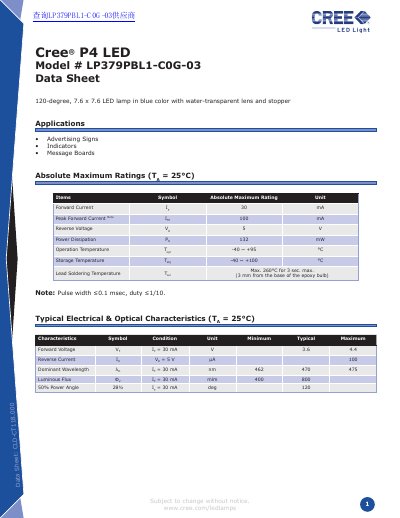

LP379PBL1-C0G-03 is the data sheet for Cree® P4 LED lamp. The lamp is 120-degree, 7.6 x 7.6mm blue color with water-transparent lens and stopper.
The Cree LP379PBL1-C0G-03 is a P4 LED lamp featuring a 120-degree viewing angle, a water-transparent lens, and a stopper. It is designed for applications such as advertising signs, indicators, and message boards. The device operates with a forward current of 30 mA and emits blue light with a dominant wavelength between 462 nm and 475 nm.
| Forward Current | 30 mA |
|---|---|
| Peak Forward Current | 100 mA |
| Reverse Voltage | 5 V |
| Power Dissipation | 132 mW |
| Operation Temperature | -40 ~ +95 °C |
| Storage Temperature | -40 ~ +100 °C |
| Dominant Wavelength | 462 ~ 475 nm |
| Luminous Flux | 400 ~ 800 mlm |
| 50% Power Angle | 120 deg |
This LED is suitable for advertising signs, indicators, and message boards.
The maximum lead soldering temperature is 260°C for 3 seconds.
