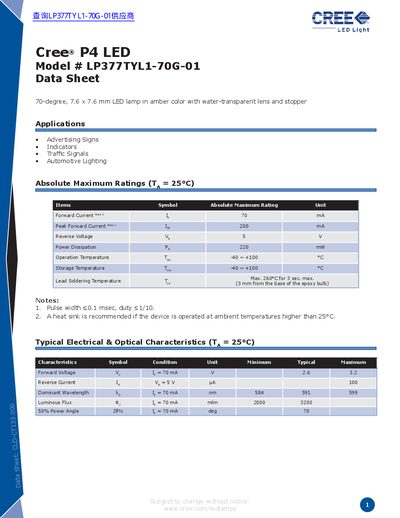

This document describes the features and characteristics of the Cree P4 LED model LP377TYL1-70G-01, including a 70-degree, 7.6 x 7.6 mm LED lamp with a water-transparent lens and stopper. The LED lamp is suitable for applications such as advertising signs, indicators, traffic signals, and automotive lighting.
This document provides a comprehensive technical overview of the Cree LP377TYL1-70G-01 LED lamp. It is an amber-colored device with a water-transparent lens and stopper, measuring 7.6 x 7.6 mm. The datasheet specifies applications such as advertising signs, indicators, traffic signals, and automotive lighting.
| Forward Current (I_F) | 70 mA |
|---|---|
| Peak Forward Current | 200 mA |
| Reverse Voltage (V_R) | 5 V |
| Power Dissipation (P_D) | 220 mW |
| Operation Temperature Range | -40 ~ +100 °C |
| Dominant Wavelength | 584 nm to 599 nm |
| Luminous Flux Range | 2000 - 3200 mIm |
| 50% Power Angle | 70 deg |
The lamp is suitable for advertising signs, indicators, traffic signals, and automotive lighting.
Yes, a heat sink is recommended if the device is operated at ambient temperatures higher than 25°C.
The absolute maximum forward current rating is 70 mA.
