Convenient. Digitally measure the physical parameters of paddle and basket components with this easy-to-use, portable instrument. Data retention. Manage and retain test data via printouts from the onboard printer or through Microsoft® Excel spreadsheets. Data includes serial numbers, parameters and space for operator and approval signatures. Key Benefits Compliant. Designed for a 21 CFR Part 11 environment, be confident knowing that your physical parameter measurements conform to USP, FDA and ASTM standards for Mechanical Qualification, and are measured with NIST-traceable, calibrated sensors.

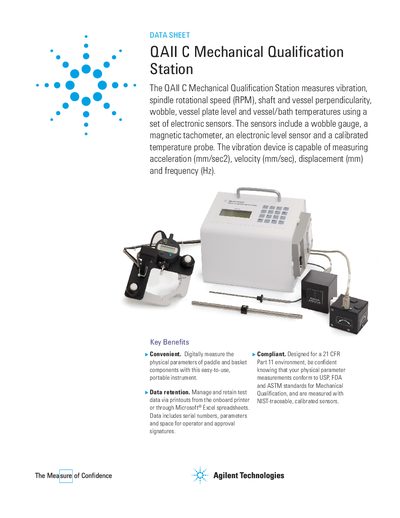

The Agilent QAII C Mechanical Qualification Station is a portable instrument designed to measure physical parameters of paddle and basket components in dissolution testing. It utilizes a set of electronic sensors, including a wobble gauge, magnetic tachometer, electronic level sensor, and calibrated temperature probe, to ensure compliance with FDA, ASTM, and USP standards.
| Voltage requirements | 115 V, 60 Hz / 230 V, 50 Hz |
|---|---|
| Current requirements | 0.5 Amp |
| Wobble gauge accuracy | + 0.02 mm from 0 - 10 mm |
| Tachometer accuracy | +0.2 at 20 RPM; + 0.5 from 30 - 250 RPM |
| Level sensor accuracy | +0.2° from 0-1.6° |
| Temperature accuracy | +0.1 °C from -50 °C |
| Battery | 7.2-volt, Nickel-Cadmium |
| Equipment weight | 2.27 kg (5.3 lb) |
No, the vibration sensor is not NIST-traceable and should be used for relative measurements only.
The station measures vibration, spindle rotational speed, shaft and vessel perpendicularity, wobble, vessel plate level, and vessel/bath temperatures.
The wobble gauge has an accuracy of plus or minus 0.02 mm from 0 to 10 mm.
The station operates on 115 V at 60 Hz or 230 V at 50 Hz.
