DS90LT012AH is a low power LVDS receiver launched by Nexperia, supporting a working temperature range of -40 to 125 ℃ and a maximum working frequency of 400 Mbps.

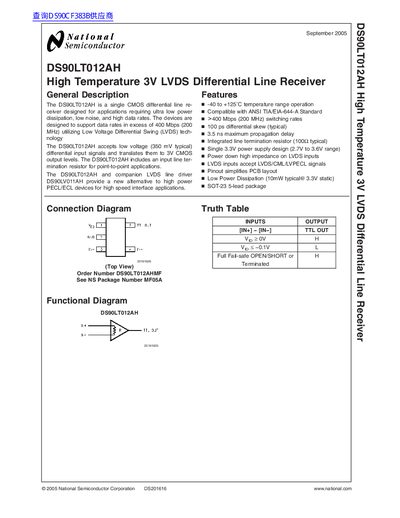

The DS90LT012AH is a single CMOS differential line receiver designed for ultra low power dissipation and high data rates exceeding 400 Mbps using LVDS technology. It accepts low voltage differential input signals and translates them to 3V CMOS output levels, featuring an integrated line termination resistor for point-to-point applications. The device operates over a wide temperature range of -40 to +125°C.
| Operating Temperature Range | -40 to +125°C |
|---|---|
| Maximum Data Rate | >400 Mbps |
| Supply Voltage Range | 2.7V to 3.6V |
| Integrated Termination Resistor | 100Ω typical |
| Maximum Propagation Delay | 3.5 ns |
| Package Type | SOT-23 5-lead |
| Power Dissipation (Static) | 10mW typical |
The maximum operating frequency is 250 MHz.
Yes, it includes an integrated line termination resistor with a typical value of 100Ω.
