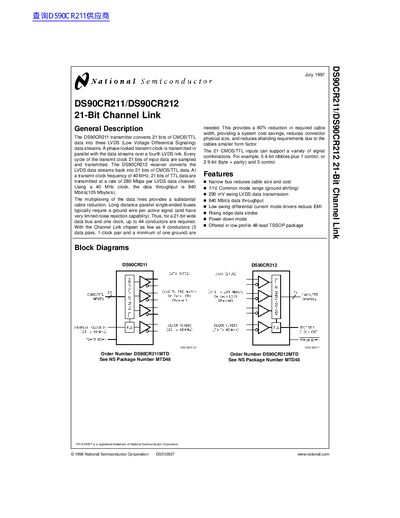

This document is an overview of the DS90CR211/DS90CR212 21-Bit Channel Link product, introducing the features and characteristics of the product.
The document describes the DS90CR211/DS90CR212 chipset, which converts 21 bits of CMOS or TTL data into three Low Voltage Differential Signaling (LVDS) data streams. The DS90CR211 acts as a transmitter, while the DS90CR212 functions as a receiver, enabling high-speed data transmission over reduced cable widths.
| Data Throughput | 840 Mbit/s (105 Mbyte/s) |
|---|---|
| Operating Temperature | -10°C to +70°C |
| Package Type | 48-lead TSSOP |
The system achieves a total data throughput of 840 Mbit/s when using a 40 MHz clock.
The device can operate in a free air temperature range up to +70°C.
