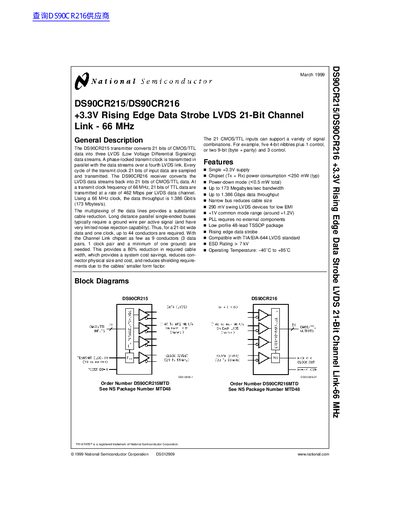

The DS90CR215/DS90CR216 is a +3.3V rising edge data strobe 21-bit channel link that uses LVDS technology for data transmission. The product features high-speed transmission, stable signals, and low cable requirements.
The document describes the DS90CR215/DS90CR216 Channel Link chipset, which converts 21 bits of CMOS/TTL data into three Low Voltage Differential Signaling (LVDS) data streams. The DS90CR215 acts as a transmitter, while the DS90CR216 serves as a receiver, operating at clock frequencies up to 66 MHz.
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Data Throughput | 1.386 Gbps |
| Bandwidth | Up to 173 Megabytes/sec |
| Chipset Power Consumption | <250 mW (typ) |
| LVDS Output Swing | 290 mV |
The transmit clock frequency can be up to 66 MHz.
The devices have an ESD Rating greater than 7 kV.
