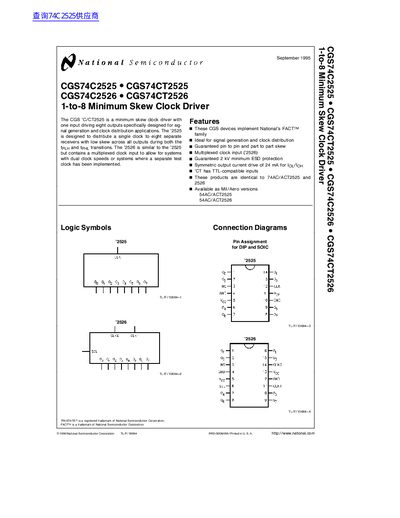

1-to-8 minimum skew clock driver, is National Semiconductor Corporation's CSG series products, used for signal generation and clock distribution, with guaranteed pin-to-pin and part-to-part skew, can be used as military versions
The CGS 'C/CT2525 is a minimum skew clock driver with one input driving eight outputs, specifically designed for signal generation and clock distribution applications. The '2526 variant is similar but contains a multiplexed clock input to allow for systems with dual clock speeds or separate test clocks. These devices implement National's FACT family and are ideal for distributing a single clock to eight separate receivers with low skew across all outputs.
| Supply Voltage (VCC) | 2.0V to 6.0V (CGS74C/CT) |
|---|---|
| Operating Temperature (CGS74C/CT) | -40°C to +85°C |
| Output Current (IOL/IOH) | 24 mA |
| ESD Protection | 2 kV minimum |
| Part-to-Part Skew (CGS74C) | 4.0 ns |
The SEL pin determines which CLKn input will have an active effect on the outputs of the circuit.
Yes, these products are identical to the 74AC/ACT2525 and 2526.
