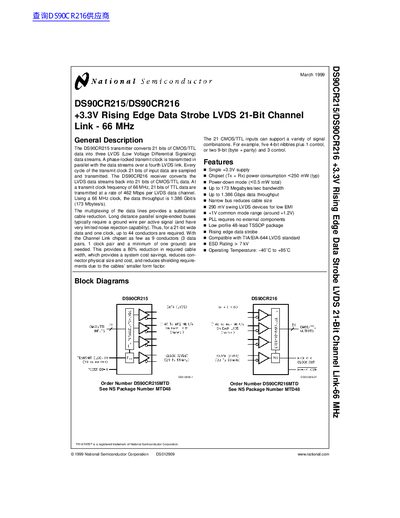

DS90CR215/DS90CR216 +3.3V Rising Edge Data Strobe LVDS 21-Bit Channel Link - 66 MHz Product Overview
The document describes the DS90CR215/DS90CR216 Channel Link chipset from National Semiconductor. The DS90CR215 transmitter converts 21 bits of CMOS/TTL data into three LVDS data streams, while the DS90CR216 receiver converts these streams back to CMOS/TTL data. Operating at a clock frequency of up to 66 MHz, the system achieves a data throughput of 1.386 Gbit/s.
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Data Throughput (Max) | 1.386 Gbps |
| Bandwidth | Up to 173 Megabytes/sec |
| LVDS Swing | 290 mV |
| Package Type | 48-lead TSSOP |
The transmit clock frequency supports up to 66 MHz.
The chipset requires as few as 9 conductors (3 data pairs, 1 clock pair and a minimum of one ground).
The chipset power consumption is less than 250 mW typical.
