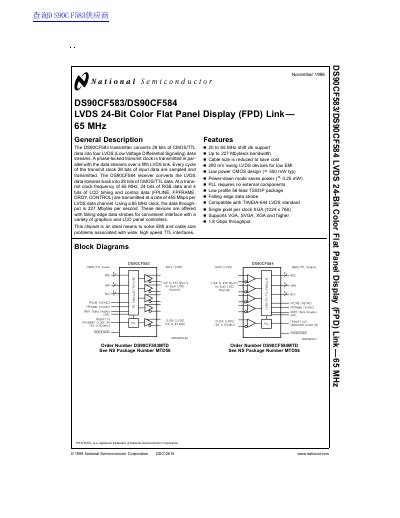

DS90CF583/DS90CF584 LVDS 24-Bit Color Flat Panel Display (FPD) Link— 65 MHz. This chipset is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces.
The document details a chipset consisting of the DS90CF583 transmitter and DS90CF584 receiver designed for Flat Panel Display (FPD) links. The transmitter converts 28 bits of CMOS/TTL input data into four LVDS data streams, while the receiver performs the reverse conversion back to 28-bit CMOS/TTL data.
| Supply Voltage (VCC) | 4.75 V to 5.25 V |
|---|---|
| Operating Temperature Range | -10°C to +70°C |
| Maximum Data Throughput | 227 Mbytes/s |
| LVDS Output Swing | 290 mV typ |
| Typical Power Consumption | <550 mW |
The device supports shift clocks from 20 MHz to 65 MHz.
Every cycle of the transmit clock, 28 bits of input data are sampled and transmitted.
The devices offer falling edge data strobes for interface with graphics controllers.
