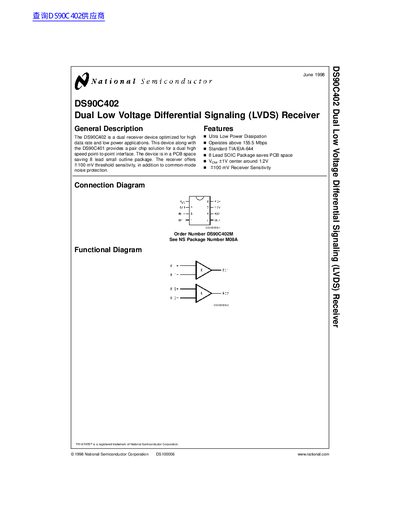

DS90C402 is a dual low voltage differential signaling (LVDS) receiver from National Semiconductor Corporation. It features ultra low power dissipation and can operate at data rates up to 155.5 Mbps.
The document describes the DS90C402, a dual receiver device designed for high-speed point-to-point interfaces operating above 155.5 Mbps with ultra-low power dissipation. It features an 8-lead SOIC package and offers +100 mV threshold sensitivity along with common-mode noise protection.
| Operating Data Rate | > 155.5 Mbps |
|---|---|
| Receiver Sensitivity | +100 mV |
| Supply Voltage (Typical) | +5.0 V |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 8 Lead SOIC |
The internal circuitry guarantees a stable known state HIGH output voltage for floating, terminated, or shorted inputs to prevent noise from appearing as a valid signal.
Unused channel inputs should be left OPEN; they must not be tied to ground or any other voltages.
