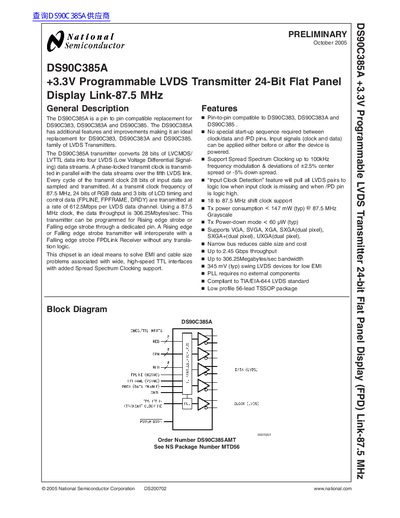

DS90C385A +3.3V Programmable LVDS Transmitter 24-Bit Flat Panel Display Link-87.5 MHz
The DS90C385A is a +3.3V programmable LVDS transmitter designed to convert 28 bits of LVTTL data into four LVDS data streams. It operates at a transmit clock frequency of up to 87.5 MHz, supporting data throughput of 306.25 Mbytes/sec. The device is pin-to-pin compatible with the DS90C383, DS90C383A, and DS90C385 families.
| Supply Voltage (Vcc) | 3.0V to 3.6V |
|---|---|
| Operating Temperature Range | -10°C to +70°C |
| Transmit Clock Frequency | 18 MHz to 87.5 MHz |
| LVDS Output Swing | 345 mV (typ) |
| Power Consumption (Typ) | < 147 mW |
| Package Type | 56-lead TSSOP |
The maximum transmit clock frequency is 87.5 MHz.
The typical power consumption is less than 147 mW when operating at 87.5 MHz.
The maximum supply voltage is 4V.
