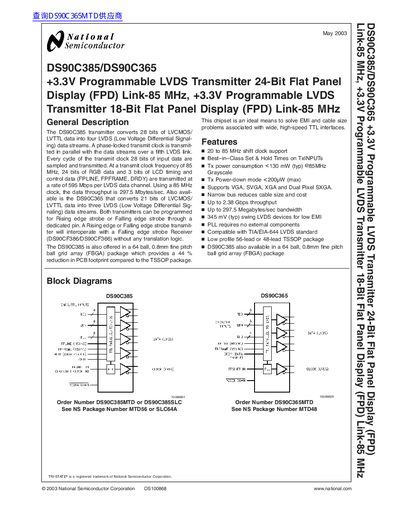

DS90C385 / DS90C365 is a 3.3V programmable LVDS transmitter that converts 24-bit or 18-bit LVCMOS / LVTTL data into four LVDS (low voltage differential signaling) data streams.
The document details two LVDS transmitter chips: the DS90C385, which converts 28 bits of data into four LVDS streams for a 24-bit RGB link, and the DS90C365, which handles 21 bits into three streams. Both devices operate at clock frequencies up to 85 MHz and support rising or falling edge strobes.
| Supply Voltage (Vcc) | 3.0 V to 3.6 V |
|---|---|
| Shift Clock Support | 20 to 85 MHz |
| Typical Power Consumption (DS90C385) | <130 mW @ 85MHz |
| LVDS Output Swing | 250 to 450 mV |
The devices support a shift clock frequency of up to 85 MHz.
Yes, it features a Tx Power-down mode with maximum consumption of 200uW.
Yes, a rising or falling edge strobe transmitter interoperates with a falling edge strobe Receiver.
