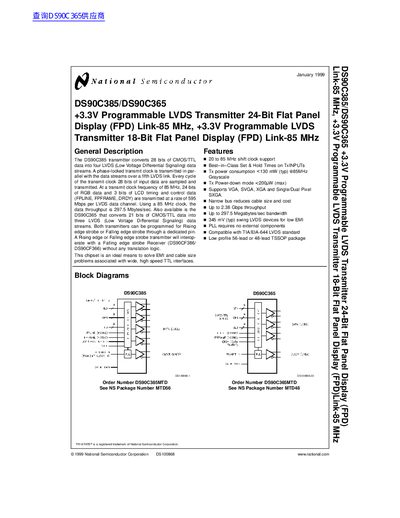

The data sheet introduces the DS90C385/DS90C365 +3.3V Programmable LVDS Transmitter 24-Bit Flat Panel Display (FPD) Link-85 MHz, +3.3V Programmable LVDS Transmitter 18-Bit Flat Panel Display (FPD) Link-85 MHz data sheet. The data sheet introduces the features and characteristics of the product.
The document describes the DS90C385 transmitter, which converts 28 bits of CMOS/TTL data into four LVDS data streams plus a phase-locked transmit clock. It also covers the DS90C365, which converts 21 bits of data into three LVDS streams. Both devices are designed for Flat Panel Display (FPD) links operating up to 85 MHz.
| Supply Voltage (Vcc) | 30 to 36 V |
|---|---|
| LVDS Output Swing | 250 to 450 mV |
| Shift Clock Frequency Range | 20 to 85 MHz |
| Typical Power Consumption (DS90C385) | <130 mW @ 85MHz |
| Package Type | TSSOP |
The data throughput is 297.5 Mbytes/sec.
Yes, it interoperates without translation logic.
