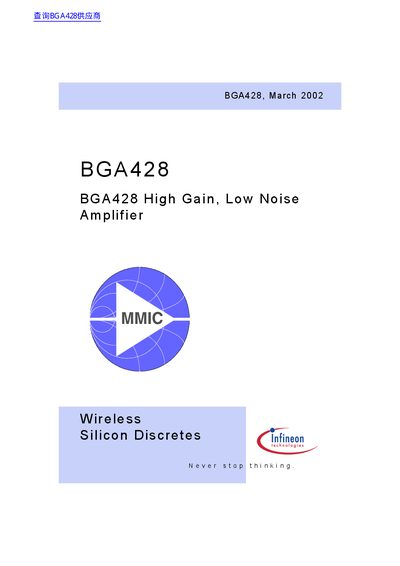

Infineon BGA428 High Gain Low Noise Amplifier Datasheet

BGA428 is a high-gain, low-noise amplifier MMIC. It is suitable for wireless silicon discretes.

Brand: Infineon
Category: amplifier
Document type: Datasheet
Language: English
Pages: 9
File format: PDF
File size: 433 KB
Published: 04 July, 2012
Updated: 28 September, 2023
MD5 checksum: 5819C887721B136651CD93F7C23E6E6F
PDF: Infineon BGA428 High Gain Low Noise Amplifier Datasheet PDF

About this manual

This document is a technical datasheet for the Infineon Technologies BGA428 High Gain, Low Noise Amplifier. It provides detailed specifications including maximum ratings, electrical characteristics, S-parameters, and application circuit information.

The device operates with a typical supply voltage of 2.4V to 3V and utilizes SIEGET®-45 technology. Key features include high gain (20dB at 1.8GHz), low noise figure (1.4dB at 1.8GHz), and an open collector output, making it ideal for GSM, DCS1800, and PCS1900 applications.

What's inside

Features
Maximum Ratings
Electrical Characteristics
S-Parameter
Application Circuit Characteristics
Package Marking
Test Circuit
Power Gain Graphs

Specifications

Gain at 1.8GHz	20 dB
Noise Figure at 1.8GHz	1.4 dB
Supply Voltage Range	2.4-3V
Operating Temperature Range	-40 +85 °C
Maximum Device Voltage	4 V

Frequently asked questions

What is the typical supply voltage for the BGA428?

The typical supply voltage range is 2.4V to 3V.

Which communication standards is this amplifier ideal for?

It is ideal for GSM, DCS1800, and PCS1900 applications.
