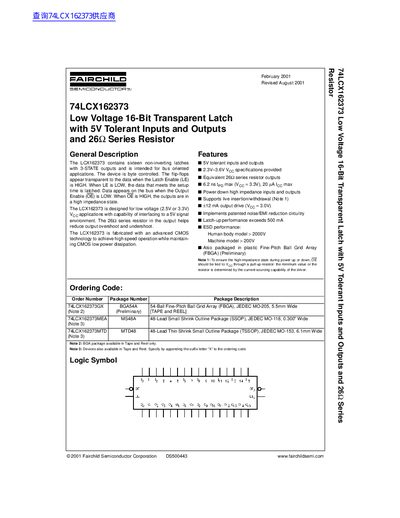

The document describes a low voltage 16-bit transparent latch from Fairchild Semiconductor Corporation, which has 5V tolerant inputs and outputs and a 26Ω series resistor. The product is designed for bus oriented applications and has byte control functionality. The flip-flops are transparent to the data when the Latch Enable (LE) is high. When LE is low, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is low. When OE is high, the outputs are in a high impedance state. The product is designed for low voltage (2.5V or 3.3V) VCC applications with the capability of interfacing to a 5V signal environment. The 26Ω series resistor in the output helps reduce output overshoot and undershoot. The product is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
The Fairchild Semiconductor 74LCX162373 is a low-voltage 16-bit transparent latch designed for bus-oriented applications. It features 5V tolerant inputs and outputs, making it suitable for interfacing with 5V signal environments while operating on 2.5V or 3.3V supplies. The device includes equivalent 26Ω series resistors in the output to reduce overshoot and undershoot.
| Supply Voltage (VCC) | 2.0V to 3.6V |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Output Drive Current | ±12 mA |
| Propagation Delay (Max) | 6.2 ns |
| Input Leakage Current | ±5.0 µA |
| Output Capacitance | 8 pF |
The device operates with a supply voltage between 2.0V and 3.6V.
Yes, the device supports live insertion and withdrawal of power.
The 26Ω series resistor in the output helps reduce output overshoot and undershoot.
