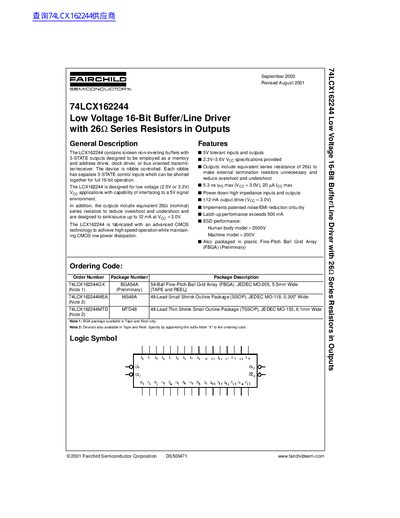

The LCX162244 is a low voltage 16-bit buffer/line driver with 26 ohm series resistors in outputs. It contains sixteen non-inverting buffers designed to be used as a memory and address driver, clock driver, or bus oriented transmitter/receiver. The device is nibble controlled, with separate 3-STATE control inputs for each nibble that can be shorted together for full 16-bit operation. The LCX162244 is designed for low voltage (2.5V or 3.3V) applications and can interface with a 5V signal environment. The outputs include equivalent 26 ohm series resistors to reduce overshoot and undershoot and can sink/source up to 12 mA at VCC = 3.0V. The LCX162244 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
The LCX162244 is a low-voltage CMOS device containing sixteen non-inverting buffers with 3-STATE outputs. It features equivalent 260Ω series resistors in the outputs to reduce overshoot and undershoot, making external termination unnecessary. The device operates at supply voltages of 2.5V or 3.3V but includes 5V tolerant inputs and outputs.
| Output Drive Current (Source/Sink) | +12 mA |
|---|---|
| Series Output Resistance | 260Ω nominal |
| Operating Temperature Range | -40°C to +85°C |
Yes, the device features 5V tolerant inputs and outputs.
