This document describes the features of the PMEG2005AEV, PMEG3005AEV, and PMEG4005AEV MEGA Schottky barrier rectifiers, including very low forward voltage, high surge current, and ultra-small plastic SMD package.

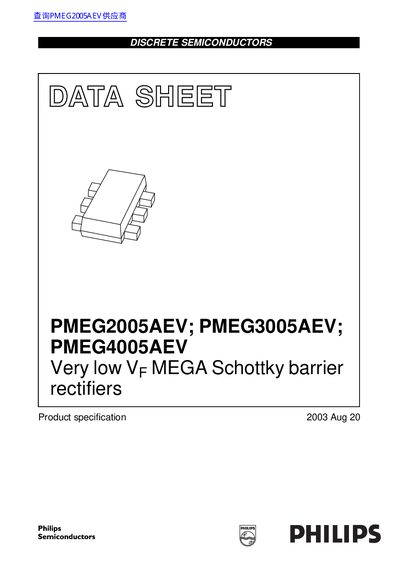

This document is a product specification datasheet for the Philips PMEG2005AEV, PMEG3005AEV, and PMEG4005AEV Very low VF MEGA Schottky barrier rectifiers. These devices feature an integrated guard ring for stress protection and are encapsulated in an ultra-small SOT666 plastic surface-mounted device (SMD) package.
| Forward current (continuous) | 0.5 A |
|---|---|
| Reverse voltage PMEG2005AEV | 20 V |
| Reverse voltage PMEG3005AEV | 30 V |
| Reverse voltage PMEG4005AEV | 40 V |
| Junction temperature (max) | +150 °C |
| Operating ambient temperature | -65 +150 °C |
The maximum continuous forward current is 0.5 A.
The PMEG2005AEV supports 20 V, the PMEG3005AEV supports 30 V, and the PMEG4005AEV supports 40 V.
The maximum junction temperature is 150 °C.
