PMEGxx05EH/EJ series 0.5 A very low VF MEGA Schottky barrier rectifiers is a low voltage rectifier product launched by Philips company. It has very low forward voltage and flat lead SMD package. It is mainly used in low voltage rectification, high efficiency DC-to-DC conversion, switch mode power supply, reverse polarity protection and other occasions.

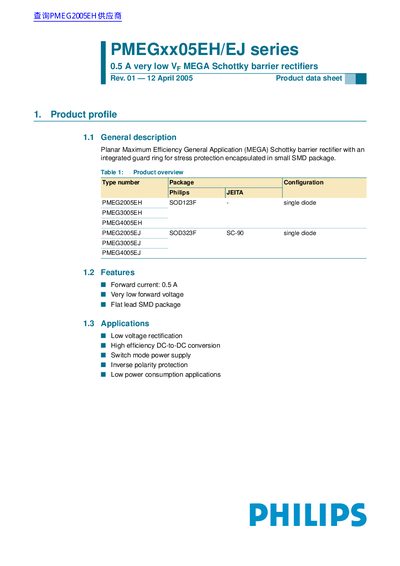

This document provides a product profile for the Philips PMEGxx05EH/EJ series of 0.5 A very low forward voltage (VF) MEGA Schottky barrier rectifiers. These devices feature an integrated guard ring for stress protection and are encapsulated in small SMD packages, suitable for applications requiring high efficiency DC-to-DC conversion and switch mode power supplies.
| Forward current (IF) | 0.5 A |
|---|---|
| Reverse voltage (VR) PMEG2005EH/EJ | 20 V |
| Reverse voltage (VR) PMEG3005EH/EJ | 30 V |
| Reverse voltage (VR) PMEG4005EH/EJ | 40 V |
| Junction temperature (Tj) | 150 °C |
They are suitable for low voltage rectification, high efficiency DC-to-DC conversion, switch mode power supply, and inverse polarity protection.
Reflow soldering is the only recommended soldering method for these devices.
