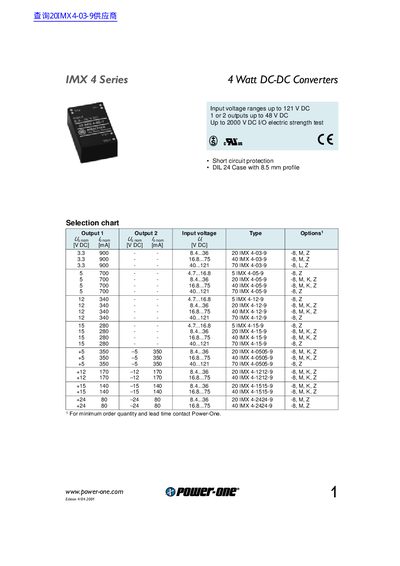

IMX 4 Series 4 Watt DC-DC Converters, Input voltage ranges up to 121 V DC, 1 or 2 outputs up to 48 V DC.
The IMX 4 Series provides 4 W DC‑DC conversion with input voltage ranges up to 121 V DC and selectable output voltages up to 48 V DC. The converters feature short‑circuit, overload and no‑load protection, and achieve up to 83 % efficiency.
The product line offers multiple mechanical options (open‑frame, DIL, SMD) and pinout configurations (options K, M, Z). Environmental ratings include an operating temperature range of –40 °C to 71 °C, storage up to 100 °C, and a MTBF exceeding 349 000 h.
| Output voltage options | 3.3 V to 15 V (single) or up to 70 V (dual) |
|---|---|
| Efficiency | up to typ. 83 % |
| Short‑circuit protection | Yes |
| Overload protection | Yes (hiccup mode) |
| No‑load protection | Yes |
| Input protection | Suppressor diode (except 5 IMX 4) |
| Relative humidity | 93 % non‑condensing |
| Extended temperature option | -40 °C to 85 °C |
Typical efficiency reaches up to 83 %.
The devices provide short‑circuit, overload (hiccup mode), and no‑load protection, plus input suppressor diodes.
