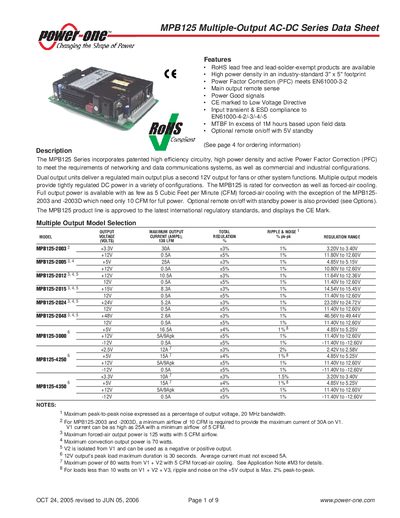

The document provides specifications and characteristics of Power-One's MPB125 series multiple-output AC-DC products, including output voltage, current, ripple, and noise.
The MPB125 series from Power-One delivers high‑efficiency, high‑density AC‑DC conversion in a compact 3" × 5" footprint. It offers active Power Factor Correction, remote sense, and optional remote on/off, meeting EN61000‑3‑2 and CE requirements. Multiple output models provide regulated voltages such as +5 V, +12 V, +15 V, +24 V and +48 V for networking, data communications, and industrial applications.
The data sheet lists detailed electrical specifications, environmental limits, interface signals, and protection features. It includes mechanical drawings for each model variant, ordering options (e.g., RoHS suffixes, remote‑on/off), and safety certifications (UL, CSA, EN, IEC).
| Input Voltage | 90‑264 VAC |
|---|---|
| Input Frequency | 47‑63 Hz |
| Maximum Forced‑Air Output Power | 125 W (5 CFM airflow) |
| MTBF | >1 M hours |
| Weight | 0.63 lb (0.3 kg) |
The MPB125 can deliver up to 125 W of output power when cooled with 5 CFM forced‑air airflow.
It accepts a continuous AC input voltage from 90 VAC to 264 VAC.
The unit is certified to UL60950‑1, CSA 22.2 No. 60950‑1, EN60950 (TLV), and IEC60950‑1.
