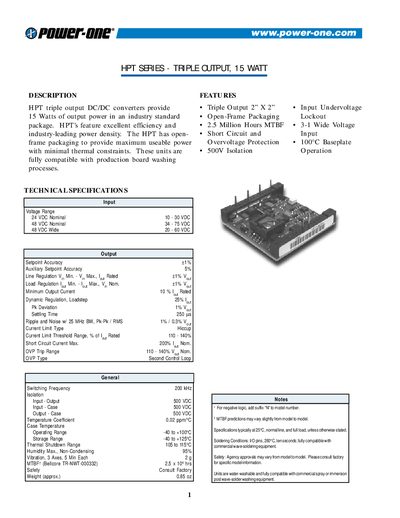

HPT triple output DC/DC converters provide 15 Watts of output power in an industry standard package. HPT’s feature excellent efficiency and industry-leading power density. The HPT has open-frame packaging to provide maximum useable power with minimal thermal constraints. These units are fully compatible with production board washing processes.
The HPT Series triple‑output DC/DC converters deliver 15 W of power in an open‑frame package with high efficiency and industry‑leading power density. They are water‑washable and compatible with commercial wave‑soldering and board‑washing processes.
The document provides detailed electrical specifications, mechanical dimensions, isolation ratings, and a range of optional features such as logic polarity, trim, heatsink styles, and pin lengths to suit various applications.
| Input Voltage Range (24 VDC Nominal) | 10 – 30 VDC |
|---|---|
| Input Voltage Range (48 VDC Nominal) | 34 – 75 VDC |
| Switching Frequency | 200 kHz |
| Isolation (Input‑Output) | 500 VDC |
| MTBF | 2.5 Million Hours |
| Weight (approx.) | 0.85 oz |
| Operating Temperature Range | -40 °C to +100 °C |
| Output Ripple (Pk‑Pk) | 1 % (25 MHz BW) |
The isolation rating between input and output is 500 VDC.
The converters operate at a switching frequency of 200 kHz.
The HPT series is rated for 2.5 million hours MTBF.
The 48 VDC nominal model accepts an input voltage range of 34 – 75 VDC.
