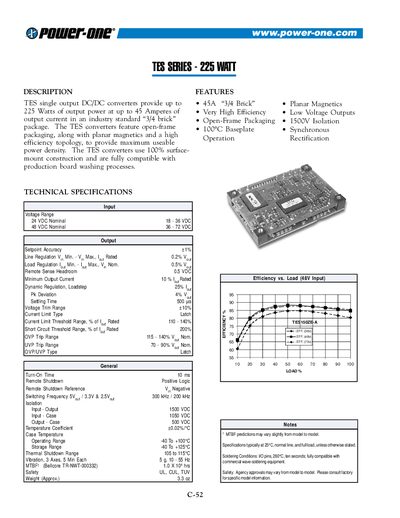

The TES Series 225 Watt DC/DC converters from Power-One provide up to 225 W of output power at up to 45 A with very high efficiency and low voltage outputs. They feature open‑frame packaging, planar magnetics, and 100 % surface‑mount construction suitable for production board washing processes.
Key specifications include input voltage ranges of 18‑36 VDC (24 V nominal) or 36‑72 VDC (48 V nominal), isolation of 1500 VDC between input and output, operating temperature from –40 °C to +100 °C, and a typical efficiency of up to 83 % depending on the model. Mechanical drawings and optional mounting/heatsink configurations are also provided.
| Input Voltage Range (24 V nominal) | 18‑36 VDC |
|---|---|
| Input Voltage Range (48 V nominal) | 36‑72 VDC |
| Maximum Output Current | 45 A |
| Isolation Voltage (Input‑Output) | 1500 VDC |
| Operating Temperature Range | -40 °C to +100 °C |
| Weight (approx.) | 3.3 kg |
The converters accept 18‑36 VDC for the 24 V nominal version and 36‑72 VDC for the 48 V nominal version.
It can deliver up to 45 A of output current.
The device provides 1500 VDC isolation between input and output.
The converter operates from –40 °C to +100 °C.
