This document describes the features and characteristics of SOT23 PNP silicon planar medium power transistors, including their part marking details, absolute maximum ratings, and electrical characteristics.

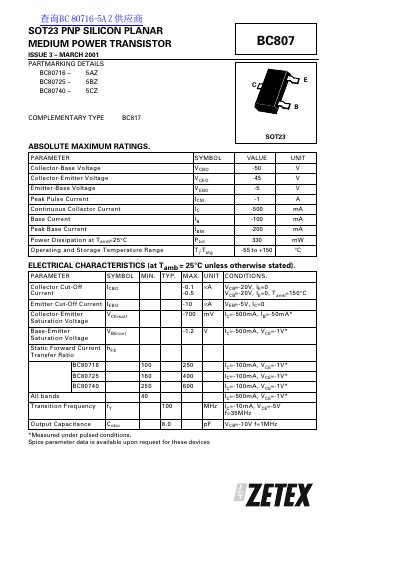

This document is a datasheet for the BC807 PNP Silicon Planar Medium Power Transistor. It provides part marking details for specific suffixes (16, 25, 40) and lists the complementary type as BC817.
The datasheet specifies absolute maximum ratings including collector-base voltage of -50V, continuous collector current of -500mA, and power dissipation of 330mW. It also details electrical characteristics such as collector cut-off current, saturation voltages, static forward current transfer ratio (hFE), transition frequency (fT), and output capacitance.
| Collector-Base Voltage | -50 V |
|---|---|
| Collector-Emitter Voltage | -45 V |
| Power Dissipation | 330 mW |
| Continuous Collector Current | -500 mA |
| Transition Frequency | 100 MHz |
| Output Capacitance | 8.0 pF |
The complementary type for the BC807 is the BC817.
The operating and storage temperature range is -55 to +150 °C.
