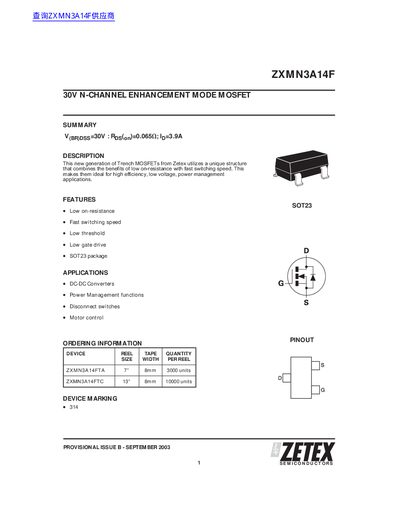

Zetex ZXMN3A14F N-Channel Enhancement Mode MOSFET Datasheet

This new generation of Trench MOSFETs from Zetex utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.

Brand: Zetex
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 198 KB
Published: 02 July, 2012
Updated: 30 September, 2023
MD5 checksum: CFB54B3C042D3C7587620BCD8C86AAFF
PDF: Zetex ZXMN3A14F N-Channel Enhancement Mode MOSFET Datasheet PDF

About this manual

This document is a provisional datasheet for the ZXMN3A14F, an N-Channel Enhancement Mode MOSFET manufactured by Zetex. The device utilizes a unique Trench structure to combine low on-resistance with fast switching speed, making it ideal for high efficiency, low voltage power management applications such as DC-DC converters and motor control.

What's inside

Summary
Features
Applications
Ordering Information
Pinouts
Absolute Maximum Ratings
Thermal Resistance
Electrical Characteristics
Typical Characteristics
Package Dimensions

Specifications

Drain-Source Voltage (V(BR)DSS)	30 V
Static Drain-Source On-State Resistance	0.065 Ohms (Typical)
Operating and Storage Temperature Range	-55 to +150 °C

Frequently asked questions

What are the main applications for this MOSFET?

The device is suitable for DC-DC converters, power management functions, disconnect switches, and motor control.

What is the maximum junction temperature?

The operating and storage temperature range extends from -55 to +150 °C.
