Zetex ZXM66P03N8 is a low on-resistance, fast switching speed P-channel enhancement mode MOSFET, suitable for DC-DC converters, power management functions, disconnect switches, motor control and other applications.

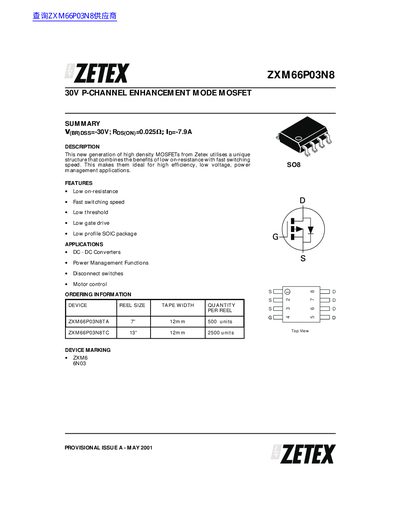

This document is a provisional datasheet issued by Zetex in May 2001 for the ZXM66P03N8 device. It describes a high-density MOSFET designed for low on-resistance and fast switching speeds, making it suitable for power management applications such as DC-DC converters and motor control.
| Drain-Source Voltage | -30 V |
|---|---|
| Power Dissipation (Tc=25°C) | 1.56 W |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SOIC |
The device is ideal for DC-DC converters, power management functions, disconnect switches, and motor control.
The operating and storage temperature range extends up to +150 °C.
