This document introduces a new generation of trench MOSFETs from Zetex, which combines the benefits of low on-resistance with fast switching speed. They are ideal for high efficiency, low voltage power management applications.
The document describes the Zetex ZXMC3A16DN8, a new generation of trench MOSFETs featuring low on-resistance and fast switching speed. These devices are designed for high efficiency, low voltage power management applications such as motor drive and LCD backlighting.

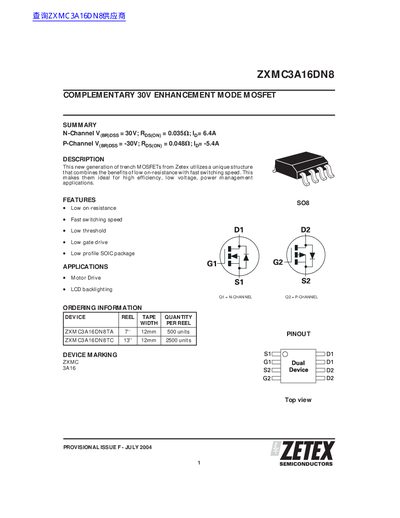

The datasheet provides absolute maximum ratings, electrical characteristics for both N-Channel and P-Channel variants, typical performance curves, ordering information, and package dimensions.
| Drain-Source Voltage (V(BR)DSS) | 30 V / -30 V |
|---|---|
| Operating Temperature Range (Tj) | -55 to +150 °C |
The device is ideal for motor drive and LCD backlighting applications.
Yes, the ZXMC3A16DN8 is a complementary device containing both N-Channel and P-Channel MOSFETs.
The device uses a low profile SOIC package.
